70000 Rs
Price Listing for .
| 1 Day | 3 Days | 7 Days | 10 Days | 30 Days |
| 1200 | 1200 | 1100 | 1000 | 800 |
| Prices shown are of per day bases. | ||||
Select to calcuate the total rental cost.

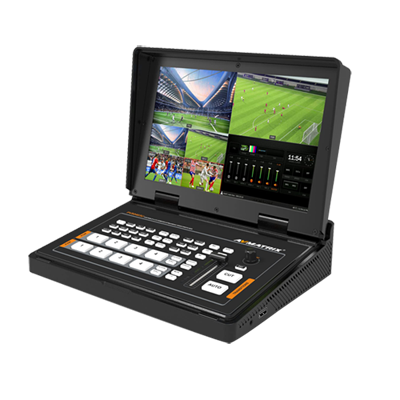

Add professional video switching and audio mixing flexibility to your concert productions, house of worship, educational forum, or live sports programming with this HVS0403U Micro 4-Channel SDI & HDMI Video Switcher from AVMATRIX. Boasting two HDMI and two SDI autodetectable inputs, the HVS0403U is a compact and user-friendly video switcher loaded with an integrated 10.1" Full HD IPS LCD monitor and many powerful features, including luma and chroma keying, mix/fade/wipe effects, audio mixing, and a picture-in-picture (PiP) or picture-on-picture (PoP) layout, using tactile functions such as auto and cut transitions or the T-bar.
| Available M/E Layers | 2 M/E |
| Effect Types | 1 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
| Graphics Memory | 32 Images |
| Downstream Keys | 1 x Chroma, Luma, DVE |
| Generators | 2 x Color 1 x Pattern |
| Audio Mixing | 2-Channel Mixing |
Processing
| Switching Type | Pushbutton, Software, T-Bar |
| Processing Resolution | 1080p |
| Color Processing | YUV RGB |
Input
| Number of Video Input Sources | 4 |

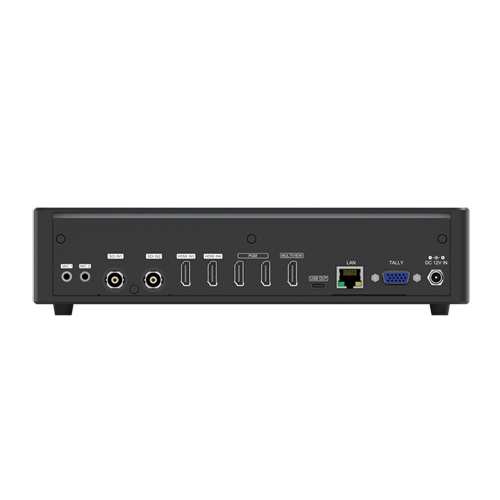

| Video Input Connectors | 2 x HDMI Female 2 x BNC (3G-SDI) Female |
| Input Video Format | HDMI 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 24/25/29.97/30/50/59.94/60 fps 576p 50 fps 576i / 625 lines 50 fps 480p 59.94/60 fps 480i / 525 lines 59.94/60 fps |
| Audio Input Connectors | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 2-Channel (per Input) SDI: 2-Channel (per Input) |
Output
| Video Output Channels | 2 |
| Video Output Connectors | 2 x HDMI Female (Program) 1 x HDMI Female (Preview) 1 x USB Type-C (USB Video) Female |
| Output Video Format | HDMI 1080p at 23.98/24/25/30/50/60 fps 1080i 50/60 fps USB Type-C 1080p at 60 fps |
| Embedded Audio Output | HDMI: 2-Channel (per Output) USB Type-C: 2-Channel (per Output) |
| Multiview Output | 4-Way Multiview viaHDMI |
| Monitor Output | 1 x HDMI |
Connectivity
| Other I/O | 1 x DE-15/DB-15 Tally Input 1 x RJ45 LAN Input/Output 1 x USB Type-A Firmware, Service Input |
| Video Standard Compliance | SMPTE 259M/292M/424M |
| Recording Media | 1 x USB 2.0 Type-A (External Drives) |
Display
| Display Size | 10.1" |
| Screen Resolution | 1920 x 1080 |
| Power Connector | 1 x Barrel (7 to 24 VDC) Input |
| Power Consumption | 12 VDC at 1.8 A (12 W) |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
General
| Dimensions | 10.3 x 7.6 x 2.3" / 26.1 x 19.3 x 5.8 cm |
| Weight | 3.5 lb / 1.6 kg |
Packaging Info
| Package Weight | 4.875 lb |
| Box Dimensions (LxWxH) | 12.2 x 11.45 x 4.35" |
